Sheet Molding Compound

Flex composites, as a company with 20 years of experience in producing and using composite materials, take pride in being a composite materials professor, using cutting-edge technology in materials and manufacturing processes to provide our customers with a competitive advantage in their industry.

Fiberglass & Resin

The Chopped Fiberglass are synchronously transferred on the layer of pre-formulated resin.

laminating process

The Chopped Fiberglass, Fiberglass Fabric Layer, Polymer Resin layers, and Plastic film layers are undergoing the process of laminating to shape a sheet.

Mechanical Stretching

The mechanical stretching process of sheet molding compound prevents dimensional change of resin when temperature changes.

Viscosity Testing

The test used a specific geometry and a motor to apply a force on the polymer resin sample.under certain conditions, correlations can be made between dilute-solution viscosity and molecular parameters such as molecular weight or polymer chain length

Fiberglass and Resin

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

laminating process

The Chopped Fiberglass, Fiberglass Fabric Layer, Polymer Resin layers, and Plastic film layers are undergoing the process of laminating to shape a sheet.

Mechanical Stretching

The mechanical stretching process of sheet molding compound prevents dimensional change of resin when temperature changes.

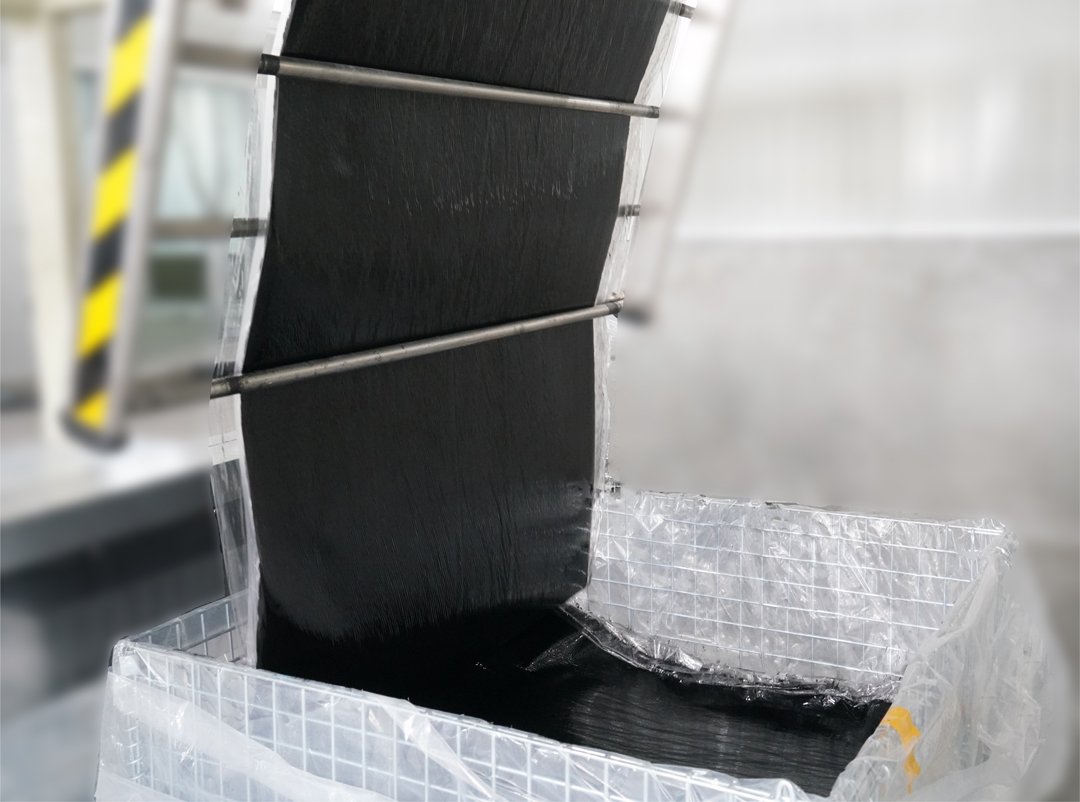

SMC Gathering

The yield out sheet molding compounds are gathered in a box and ready for pakaging

Packaging

The wooden packaged composite materials allow challenging transportation conditions.

Advantages of SMC & BMC



Weight reduction

Composites can be up to 70 percent lighter than steel, which help to easily replace a large number of metal parts.



Strength and stiffness

The resin provides ductility, durability and system cohesion. The fibers are largely contributing to strength and stiffness.



Electrical performance

Excellent electrical properties, particularly electrical strength, water absorption, and surface resistivity.



Fire retardance

Great fire retardance and low smoke generation is important for many applications and markets.



Precision Dimensions

The ability to compensate for shrinkage with special additives makes even the most challenging designs & engineering parts feasible.

Product Code	Application & Markets	Density	Shrinkage	Heat Distortion Temp	Continuous Service Temp	Young's Modulus	Tensile Strength	Flexural Strength	Flex Moudules	Impact Strength	Glow IRE Index	Fire Retardancy	Surface Reistivity	Comparative Tracking Index	Water Absorption
FL S01	Lamp	1.8g/cm³	0.05%	>200 °C	165 °C	10 GPa	55 MPa	125 MPa	9 GPa	60 kJ/m³	750℃	UL 94 HB@3 mm	10¹² Ohm	CTI600 Level	<0.5 %
FL S03	Electrical	1.8g/cm³	0.15%	>200 °C	165 °C	12 GPa	80 MPa	190 MPa	10 GPa	85 kJ/m³	750℃	UL 94 HB@3 mm	10¹² Ohm	CTI600 Level	<0.5 %
FL S06	Acoustic Damping	2.3g/cm³	0.1%	>200 °C	165 °C	10 GPa	60 MPa	150 MPa	10 GPa	65 kJ/m³	750℃	UL 94 HB@3 mm	10¹² Ohm	CTI600 Level	<0.5 %
FL S07	Electrical	1.7g/cm³	0.1%	>200 °C	165 °C	10 GPa	60 MPa	140 MPa	10 GPa	65 kJ/m³	960℃	UL 94 v-0@3.2 mm	10¹² Ohm	CTI600 Level	<0.5 %
FL S09	Vehicle	1.9g/cm³	0	>200 °C	165 °C	12 GPa	85 MPa	180 MPa	10 GPa	80 kJ/m³		UL 94	10¹² Ohm	CTI600 Level	<0.5 %
FL S10	Exterior Body	1.9g/cm³	-0.05%	>200 °C	165 °C	11 GPa	90 MPa	180 MPa	10 GPa	80 kJ/m³		UL 94	10¹² Ohm	CTI600 Level	<0.5 %
FL S15	Food	1.8g/cm³	0.05%	>200 °C	140 °C	11 GPa	55 MPa	140 MPa	9 GPa	65 kJ/m³		UL 94	10¹² Ohm	CTI600 Level	<0.3 %
FL S17	Water	1.7g/cm³	0.1%	>200 °C	150 °C	11 GPa	60 MPa	145 MPa	8 GPa	65 kJ/m³		UL 94	10¹² Ohm	CTI600 Level	<0.3 %
Standard		ISO 1183	ISO 2577	EN ISO 75-2	FLEX	EN ISO 527-4	EN ISO 527-4	EN ISO 14125	EN ISO 14125	EN ISO 179	IEC 60707-3	UL 94	IEC 60093	IEC 60112	ISO 62
